Description

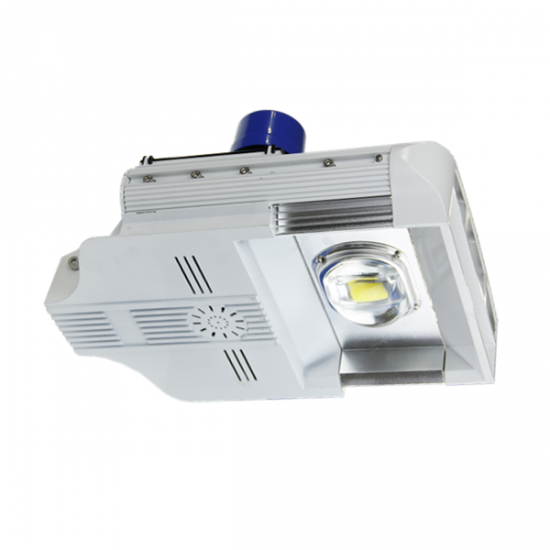

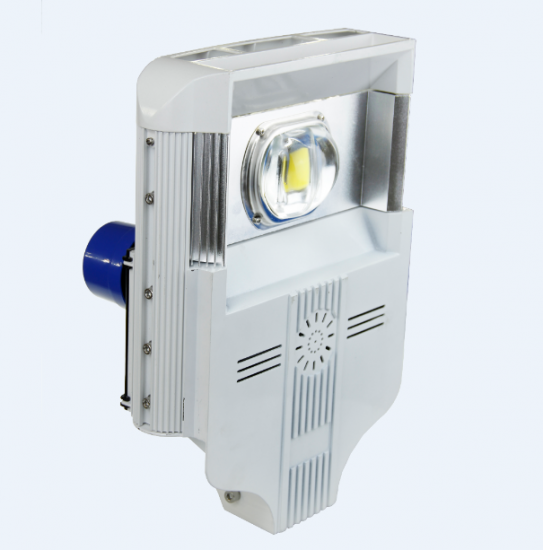

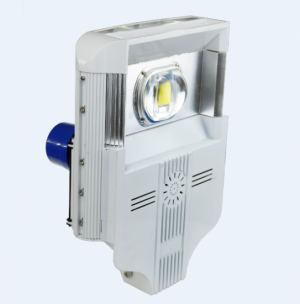

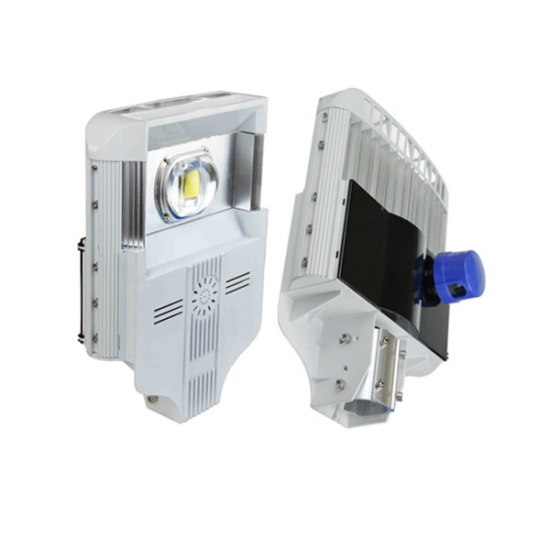

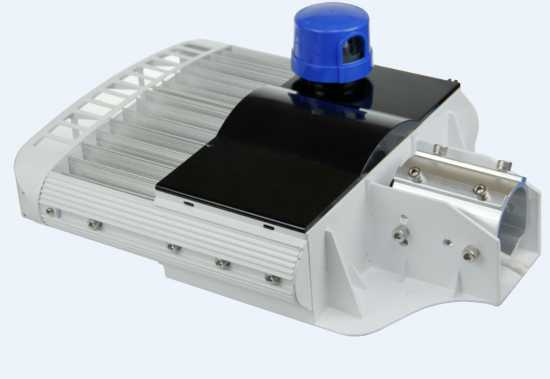

LEDcent 100W Photocell LED Street Light

Quick details:

Input voltage: AC85-265V, 50/60HZ

Power: 100W

LED chips: COB bridgelux 45mil 50W*2

LED driver: Meanwell HLG series with UL, CE, VDE, CQC.,etc certifications

UL listed Photocell controller switch.

Total Luminous flux: >10,000lm

CRI: >0.75

PF: >0.95

THD:<15%

Color Temperature: 5000-5500K

Working temperature: -30-55℃

IP rating: IP67

Lifespan: >50,000hours

Warranty: 3 years

Certifications: CE, RoHs, IP67.

Packaging & Delivery

Packing details:

One pcs packed in one 5-ply carton box, with foam and poly protection.

Delivery details:

Production time about 15-20days after payment/deposit received.

Product features:

1. Module design, one module is 50W, if LED chips for one module fail, we can replace it within 5 minutes.

Just unfasten the screw on both side, take the mal-function module and replace it with the right one.

2. Excellent quality, we adopt bridgelux 45mil LED chips, Meanwell HLG series driver, VDE/CE/UL listed cable, 304 stainless steel for excellent quality.

3. Excellent heat dissipation, we adopt 6030T high purity aluminum alloy for heat sink, the LED street light surface temperature is under 60℃, to enlong lamp lifespan.

4. More safe, a security steel rope is connected between lamp pole and LED street light, in case of car crash or violent impact, the lamp will not fall off.

5. Easy maintenance, the LED driver cover can be opened without any tool, can replace the driver very easily.

Application:

1. Road or street lighting

2. Car parking lot lighting

Optical parameters:

The batwing light distribution offers wide luminance without glare.

Pyrex glass shade allow 97% light transmission without loose, while PC only 87% allowance, 13% light will be wasted.

Pyrex glass endure -50-500℃ temperature, can working in extreme climate.

Optical lens-pyrex glass, with beam angle 135*60 degree

VDE water proof cable

Meanwell HLG series driver with 7 year warranty.

Finished LED street light is IP67 rating, can be put into water.

The spigot angle is adjustable for different lighting angle, larger angle better light distribution.

The case of LC-L001 top rated LED street light

This top-rated LED street light lifespan is  over 50000 hours, if light up 8 hours per day, it will light up for over 17 years!

If equipped with smart  driver, more energy will be saved, for example, for the first 3 hours full power running, later 3 hours half power running, last 2 hours 30% power running.
